CLASSIC - HARDWARE Factory Restore AKA JP1-BOOT
Last Updated 4 years ago
The way to do the hardware version of the factory restore (VMM) is as follows. There are 4 sets of jumpers directly above the blue terminal block. For the purpose of this we will call the left most jumper JP1 and the right most JP4 (actually labeled "Boot")
- Step 1- Turn the PV and Battery power off to the Classic and remove the front cover.

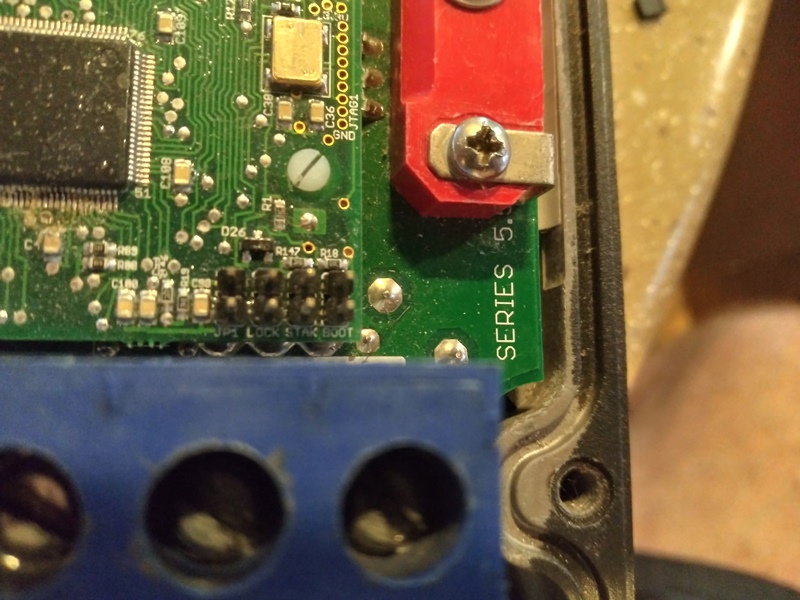

- Step 2- Locate the 2 jumpers JP1 and BOOT (JP4) above the blue terminal block. Take the actual jumpers and keep them in your hand. Refer to the picture below, they are the far left and right pins.
- Step 3- Turn the Battery power on to the Classic.
- Step 4- within 1 minute place jumper JP4 on its two pins and then place jumper JP1 on its two pins. At this point the 3 LEDs on the top of the circuit board should flash back and forth for about 60 seconds.
- Step 5- After the flashing stops power down the Classic and remove JP1 and JP4 and stow them back on a single pin like they where.
- Step 6- Put the front cover on, plug the MNGP into the TOP JACK and power up the Classic with the BATTERY BREAKER ONLY while holding in the LEFT & RIGHT arrow buttons. Follow the setup Wizard being sure to set the time & date.
